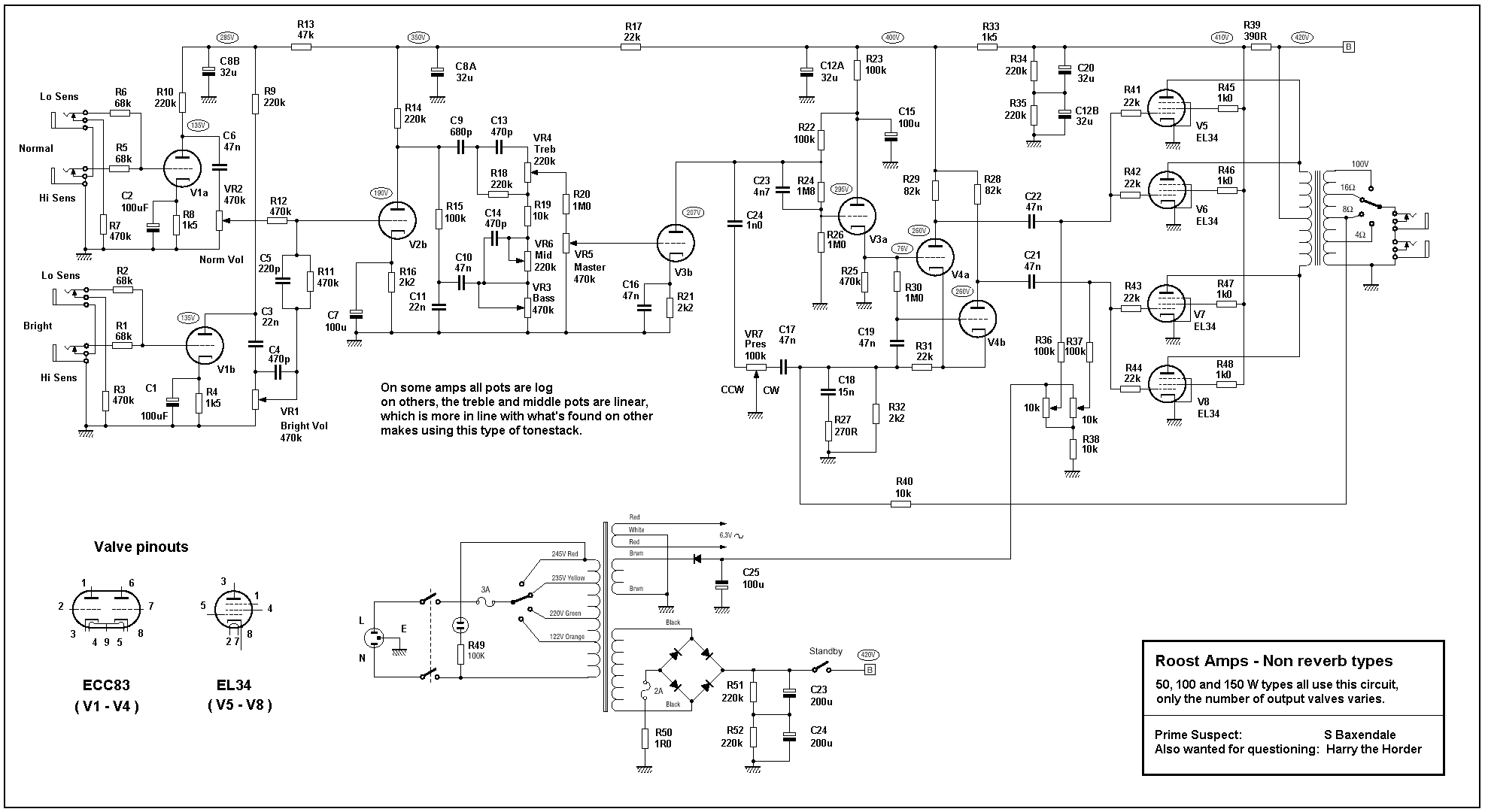

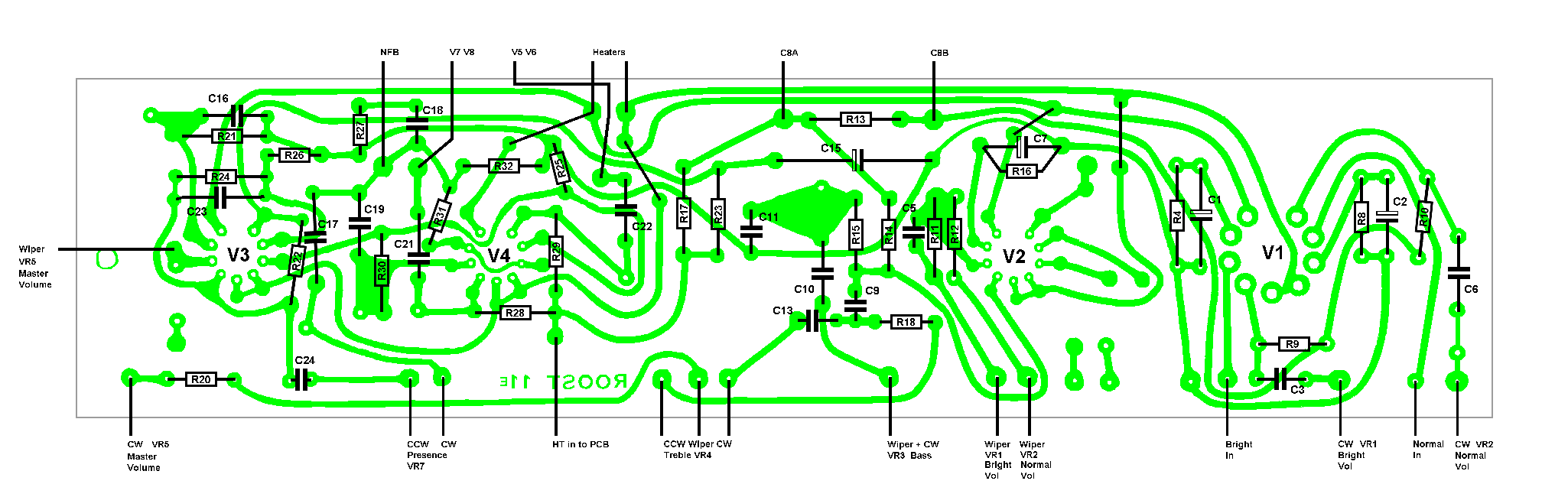

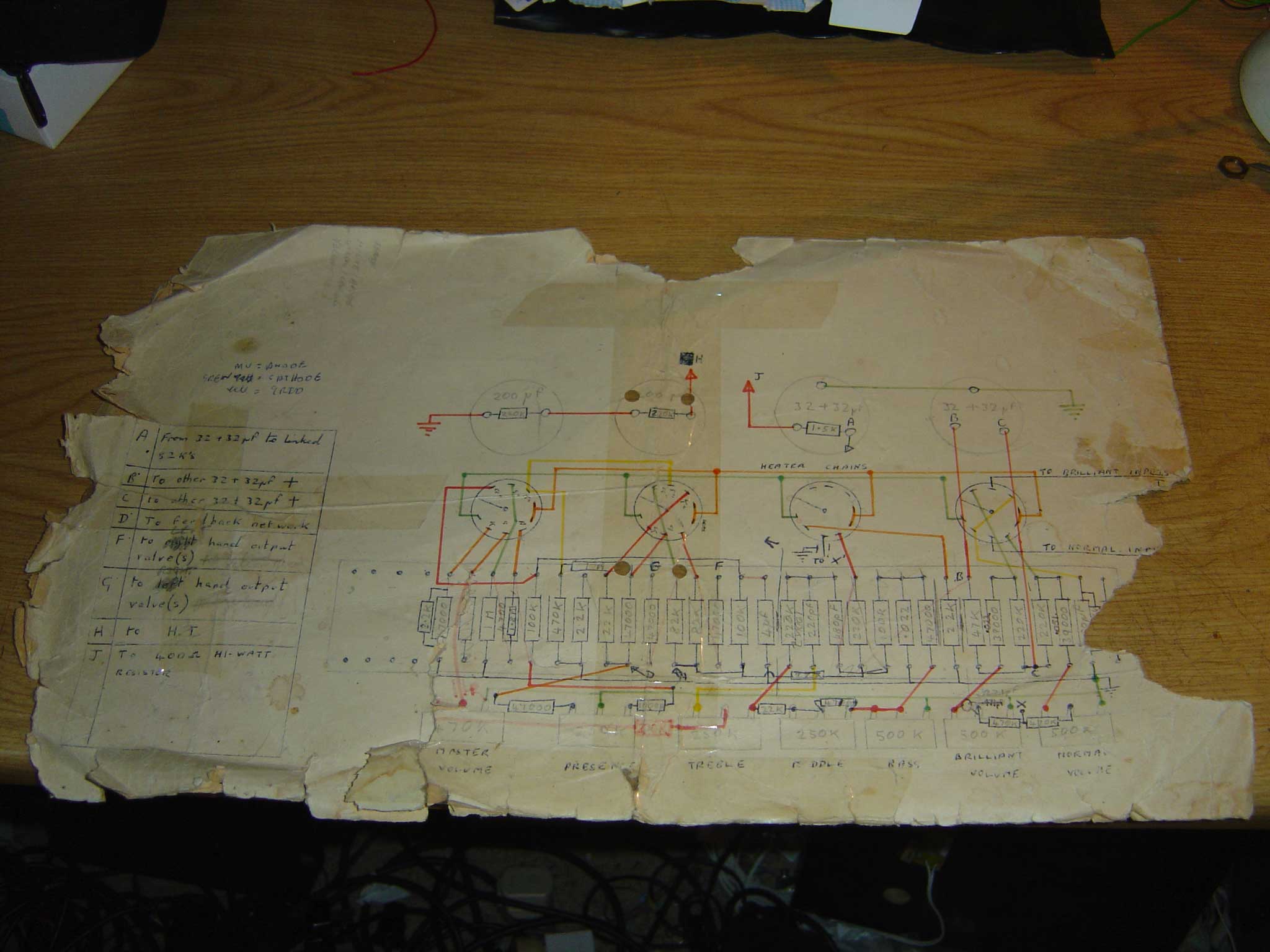

Non Reverb

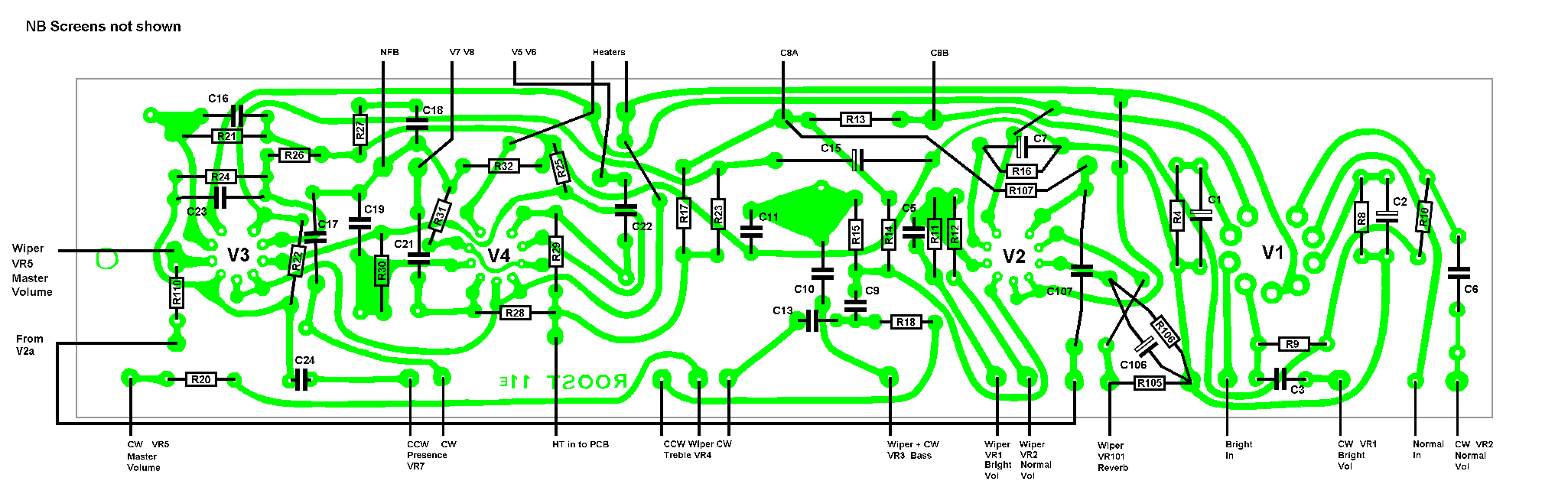

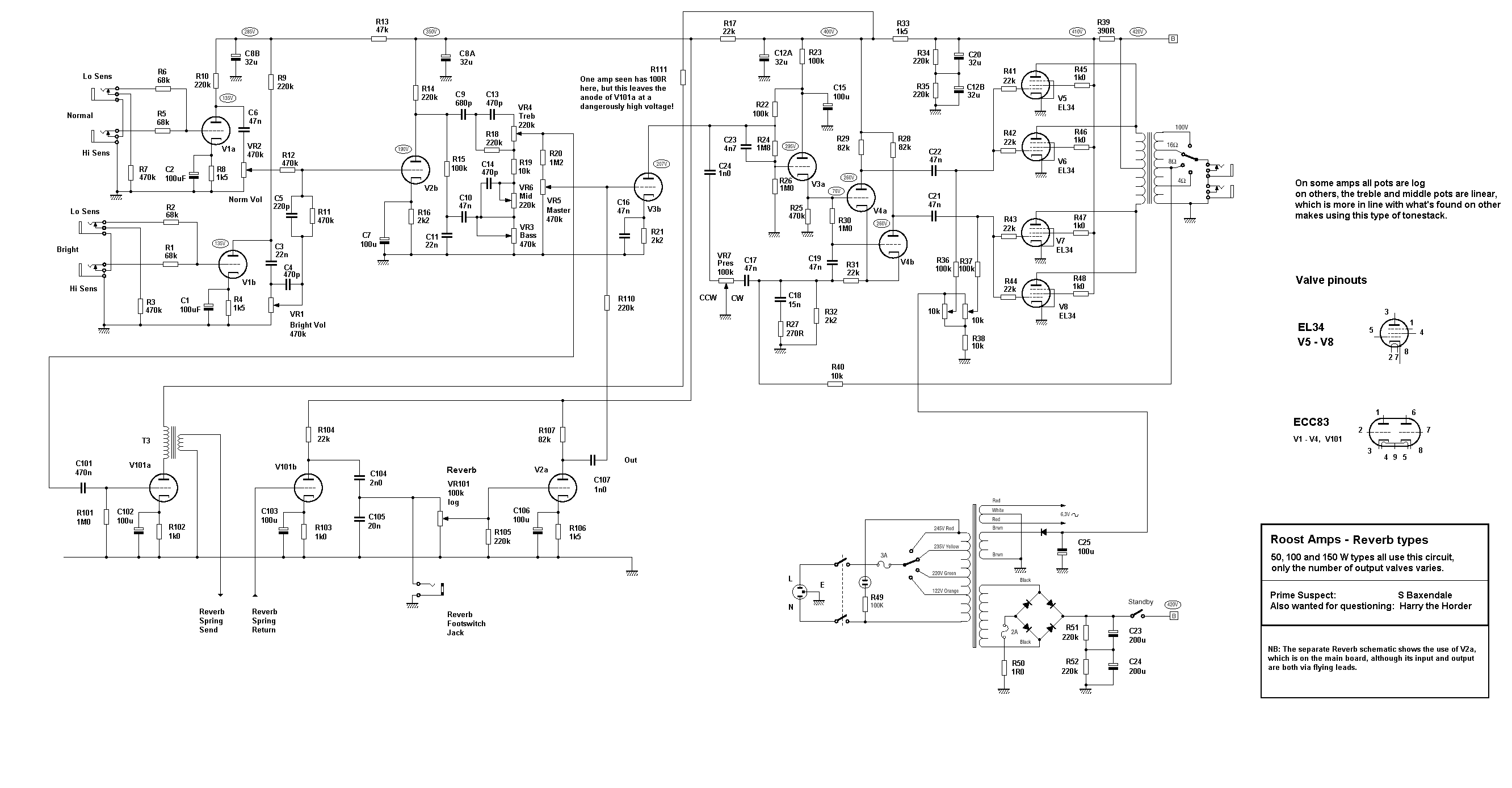

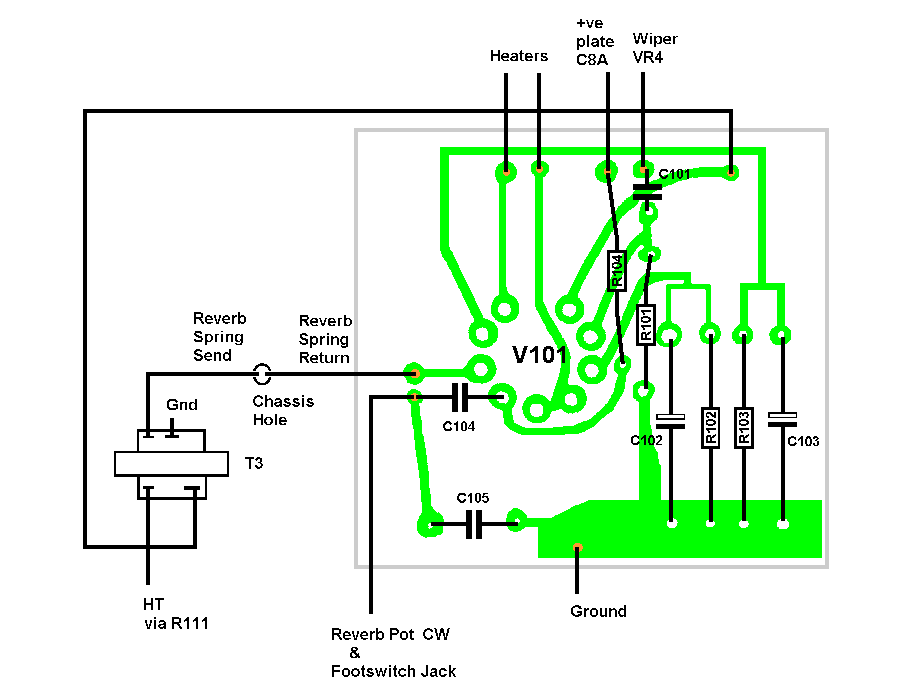

Reverb Type

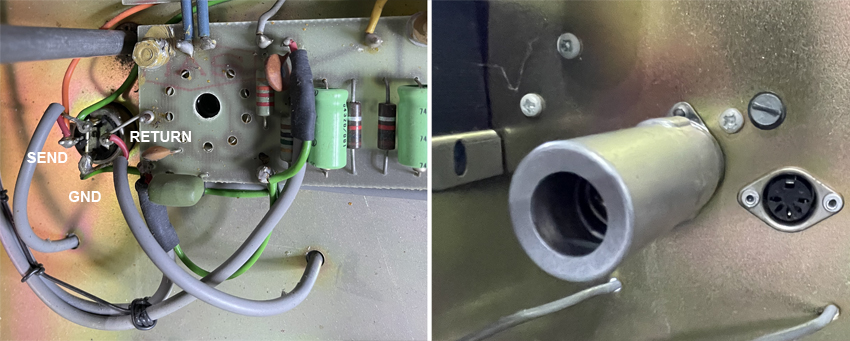

My Sessionmaster is fitted with a DIN socket next this reverb board.
For years, I had thought it to be a modification but, having now seen other chassis punched ready for this socket, I believe it may be original to the amplifier. The wiring appears to parallel the send and return to the reverb tank. Perhaps a connection to an alternative tank? Or an insert to allow another instrument to share the reverb?

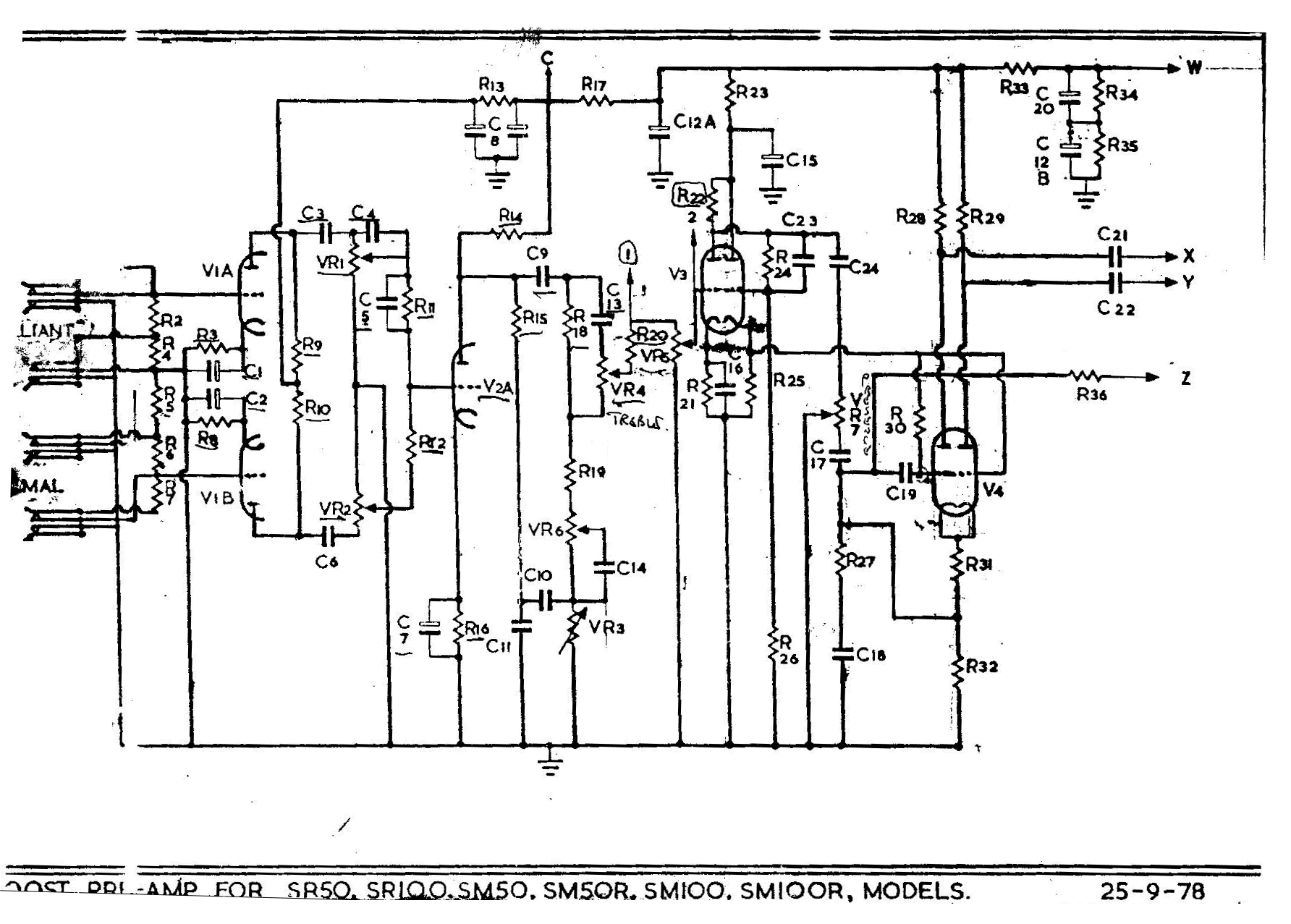

Terry Bateman's Schematics
BOM
